AG series Efficient Rolling Table Laser Cutting Machine

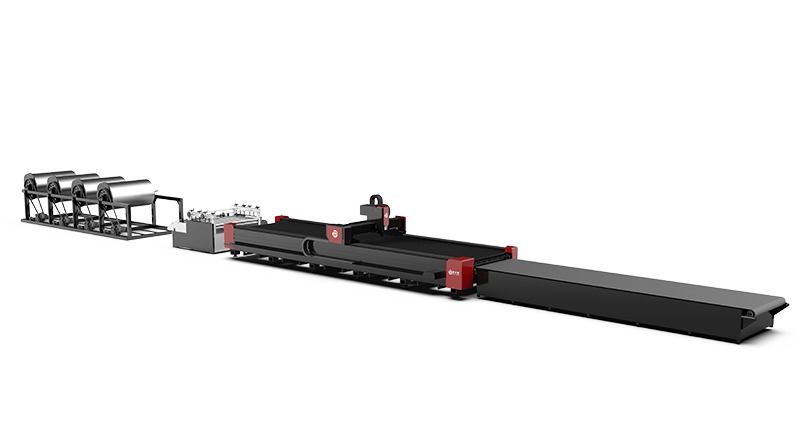

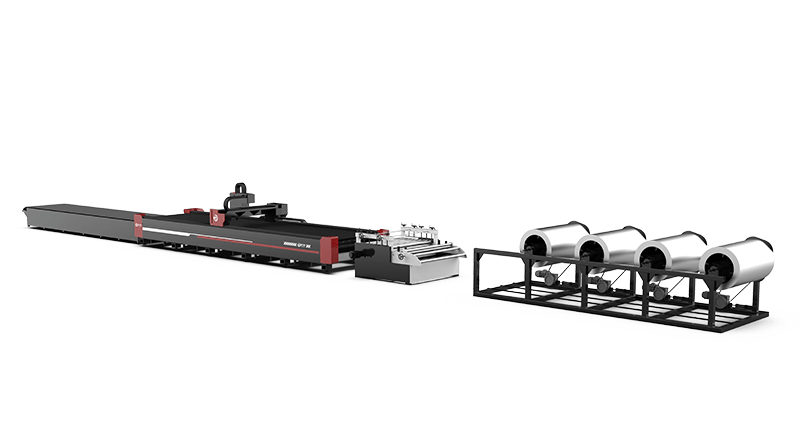

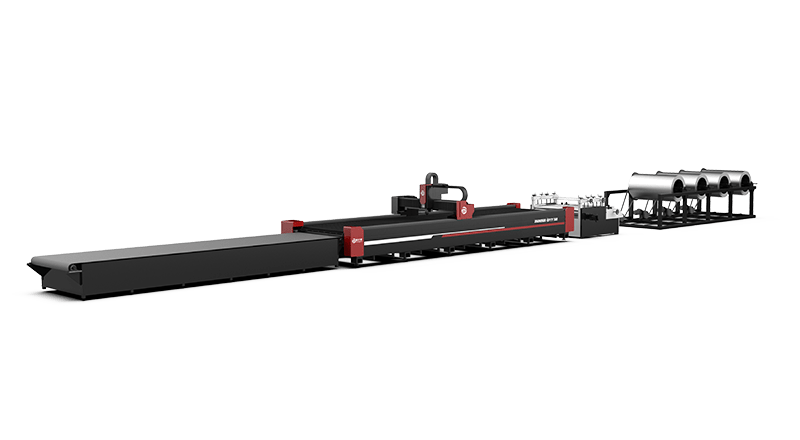

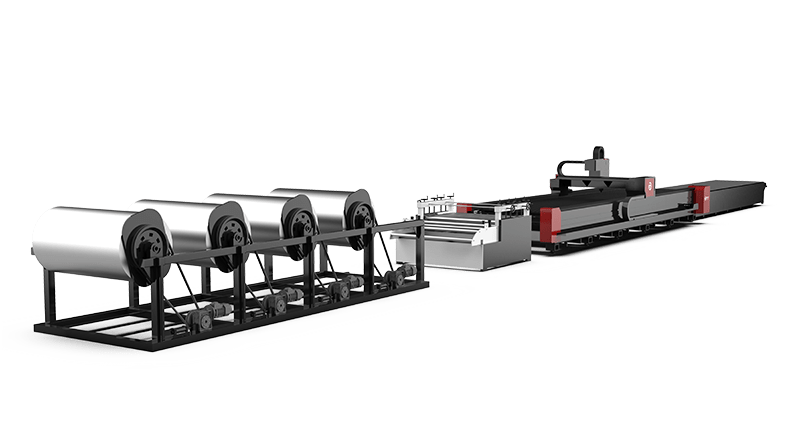

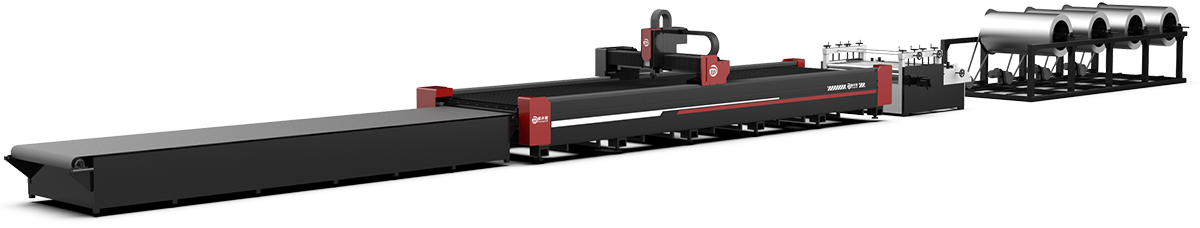

Laser plate cutting machine, laser cutting machine, FORWARD laser AG series coil fed laser cutting machine, casting bed body, specialize for coil processing .
Laser plate cutting machine, laser cutting machine, FORWARD laser AG series coil fed laser cutting machine, casting bed body, specialize for coil processing .
The auto nesting function can arrange the required quantities of individual parts into the desired material size, and to be produced at any time according to the customer’s need. The automatic nesting program can bring the benefit by increasing the efficiency of material utilization, reduce the waste of material and reduce the production cost.
It can be responded to the needs of production & parts changes at any time. When the parts change, it just need to modify the 2D graphics through programming software, then continue to cut desired parts without any others machine setting.
The mass production by using coil fed laser cutting system, beside the cost of machine investment, you are getting huge benefits from its high efficiency in laser cutting, less material wastage and importantly overall production cost is greatly reduced.
| Functional parameter table ●Standard configuration ○Optional ×No configuration required | 6015AG | ||
| project Item | Subitem | ||
| Basic parameters | Processing format | 6000mm*1500mm | |
| Maximum linkage speed | 110m/min | ||
| Smart functions | Fast, efficient, and easy to use | Automatic processing | ● |
| Perforation process | ● | ||
| High speed cutting process package | ● | ||
| Automatic adjustment of cutting gas pressure | 6KW Below: Oxygen 6KW Above: oxygen, nitrogen, air | ||
| Automatic focusing of laser head | ● | ||
| Laser cutting process database | ● | ||
| Multi functional industrial handle | ● | ||
| performance | Machine tool dimensions | 19200*4045*1832 | |
| Maximum acceleration | 1G | ||
| Countertop load-bearing capacity | 3000kg | ||
| Total weight | 8100kg | ||
| Z-axis travel | 100mm | ||
| positioning accuracy | ±0.05mm | ||
| Repetitive positioning accuracy | ±0.03mm | ||
CypCut will automatically optimize the errors when import drawing, delete duplicates and invisible graphic, smooth curve and join line segments etc.
Graphical design of technique setting, quick and easy to finish setting of lead line, micro-joint and kerf width compensation etc. of single or large quantity parts.
CypCut provides floating and workpiece coordinates for small and large quantity production.
Thorough and timely statistic of machine production to help you manage the task schedule.
Support capacitance and photo-electric sensing to find workpiece edge and offset sheet placement angle.
Auto correct the dual-drive position error each time after machine axes return origin.
Forward Laser Technology Co., Ltd.It is a professional R&D and production company Laser cutting machine A modern manufacturing enterprise. Since its establishment, the company has focused on optimizing and integrating resources in various aspects such as technology, quality, application, and market. Laser cutting machines guided by “high efficiency, high performance, and high precision” are widely used in various fields such as automobiles, steel, ships, machinery, aerospace, national defense, and rail transportation.Yida LaserFocusing on large, medium, and small format laser cutting machines. Centered around the business philosophy of “establishing a business with precision and winning with quality”, we continuously improve product quality and gain the trust and support of our customers! To learn about the latest product quotations, you can contact our website http://www.ydjgkj.cn/ We will contact you as soon as possible on the phone number provided.
If everyone is interested in our D-Series Large Breadth Laser Cutting Machine If you have any further questions, please click on our website for consultation:https://www.forward-laser.com/
Your needs are our pursuit, and we will provide you with personalized solutions with 100 percent dedication and responsibility. Looking forward to working with you to create a better tomorrow!
