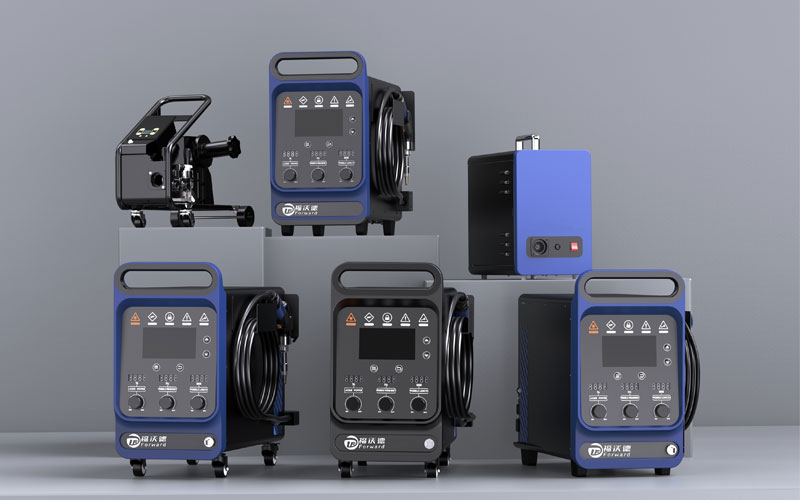

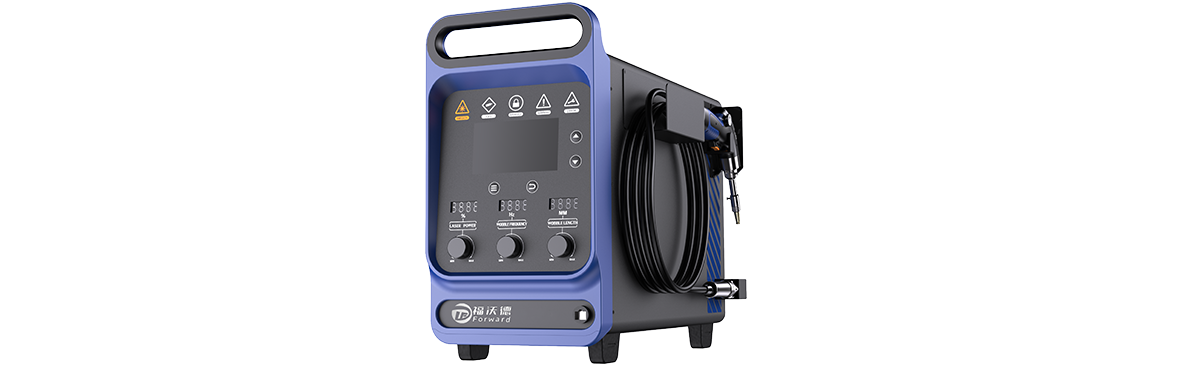

Handheld Fiber Laser Welding Machine
Productive design with solid structure
Laser output is allowed only when welding gun head and the workpiece clamp lead are parts of an electrically conducting closed circuit.
Laser output is allowed only when the input gas pressure is ≥ 0.1MPa.

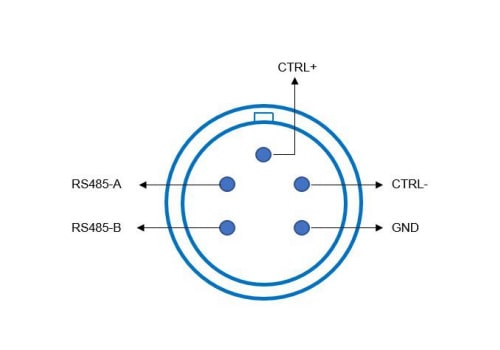

External Safety Interlock Circuit
Only when the external safety interlock port is in the On state can the laser be emitted.
The protective glass is provided with a mounting sensor, and only when the protective glass is mounted in place can laser be emitted.

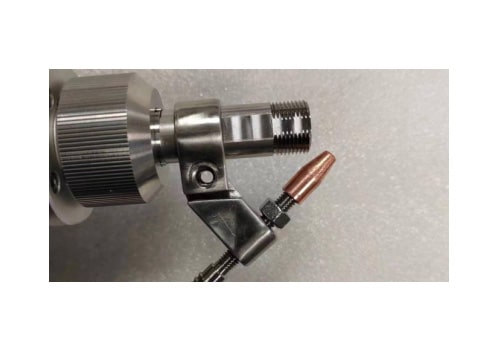

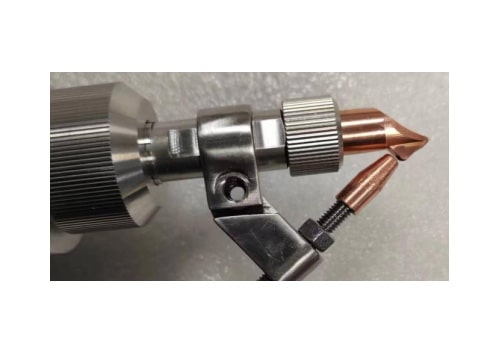

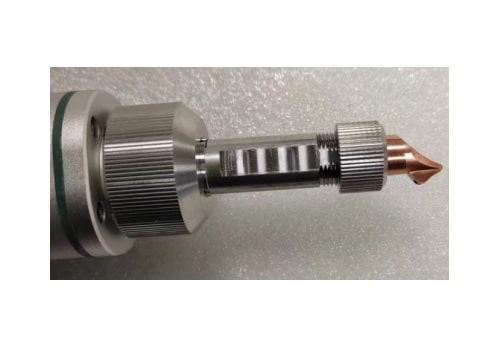

1. Insert the copper nozzle into the air tube; 2. Put on the locking cap; 3. Tighten up the locking cap.
If the protective glass is damaged, the welding effect will be reduced; the long-term use of damaged protective glass will lead to temperature rise of the welding gun and affect the reliability of the welding gun.
Cleaning the Filter Screen
Clean and replace the filter screen at regular intervals. Otherwise cooling air volume of the Welder will be reduced, causing temperature fault to the Welder.
Intelligent Touch Screen Controlling：

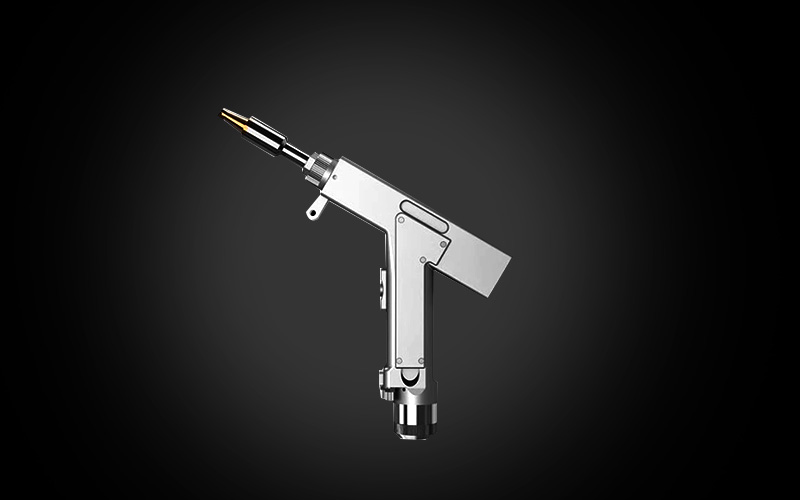

Laser Welding Head For Efficiency:

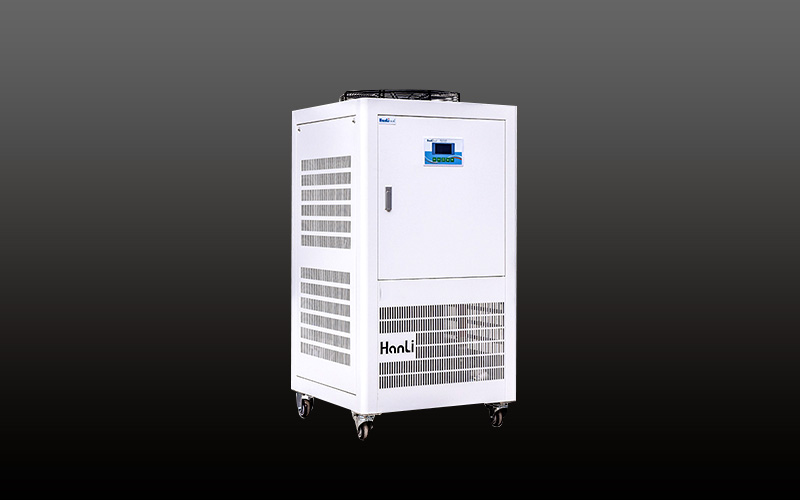

Water Chiller For Efficient Cooling:
Working parameters | FORWARD-S | ||
Laser Power | 1000W/1500W/2000W | ||
Laser Wave Length | 1070nm | ||
Working Environment | 10℃~40℃ | ||
Rated voltage | 1000/1500W Single phase 220V | ||
2000W Three phase 380V | |||
Frequency | 50/60Hz | ||
Total Machine weight | 120KG | ||
Machine dimensions | 1200*680*1000mm | ||
Parameters Data |
|
|
|
Model | FORWARD-S-1000W | FORWARD-S-1500W | FORWARD-S-2000W |
Laser Power | 1000W | 1500W | 2000W |
（Stainless steel，1m/min） | 3mm | 4mm | 5mm |
（Carbon steel，1m/min） | 2.5mm | 3mm | 4mm |
（Aluminium alloy，1m/min） | 2mm | 3mm | 4mm |
cooling method | Built in water cooling | ||

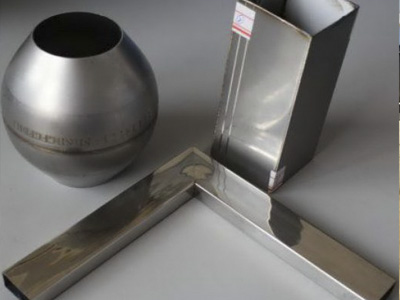

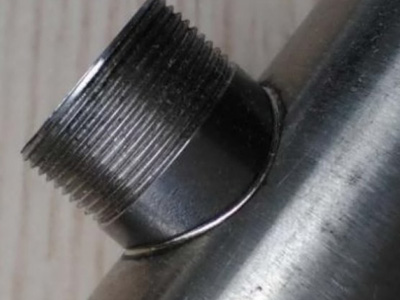

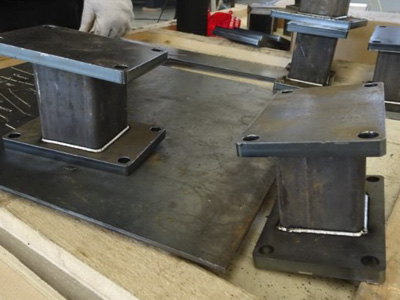

This equipment can be widely used in advertising, kitchenware, kitchen and bathroom, home appliance industry, furniture industry,stainless steel doors and windows, medical equipment, shelves, machine cabinets and mold repair and other industries.Mainly used for welding metal: Carbon steel, stainless steel, brass, 1-3 series aluminum alloy, 4-7 series aluminum alloy, red copper.

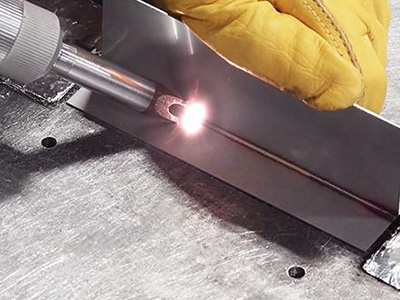

Fiber laser welding head is suitable for stainless steel, copper, aluminum, gold, chromium, nickel and other metals or alloys It can also be used for a varies of welding between different material, such as copper – brass, titanium gold, nickel -copper and so on.
